4.0 Post Production

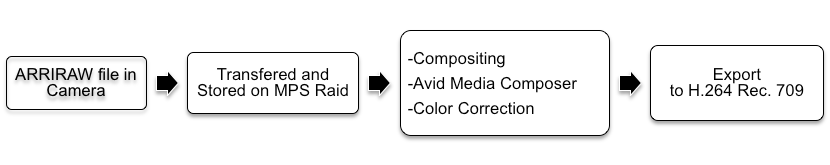

Post Production Workflow

Vison3 500T Film

  • Footage from the Arriflex 35 BL-III will immediately be sent to Cinelab, a motion picture laboratory, to be processed.

  • Film transfer will be done using a 4K scan by Kyle Alvut, a former Kodak employee. The files will be calibrated to printing density colorspace.



Arri D-21

  • The ARRI D-21 data, files will be kept in RAW with ARRI’s proprietary codec ARRIRAW.

  • The media will be stored on the raid in the MPS post-production room, because AVID Media Composer software can proxy files and return a conform file, it will be used for post-production editing.

  • The conform AAF will be returned into Blackmagic’s Davinci Resolve for final color grading from the original source content.


  • For color correction, the files will be converted to the Academy Color Encoding System (ACES) color space to simulate the typical workflow for a modern feature film.

  • In ACES, a larger color gamut is utilized and one can manipulate an image without losing information.

  • It also provides color management and attempts to account for human visual system factors when rendering the color to a display.

    • The display in the MPS lab was recently calibrated through a class lab assignment right before the shootout took place.

  • An input device transform is used to convert the raw camera data into the ACES color space.

  • The information is then processed through the Reference Rendering Transform (RRT) and the Output Device Transform (ODT) to create color information that is renderable to the display.

  • The ACES conversion will be output to openEXR files for the final pass of VFX and color grading.

  • After grading is complete an export will be made in H.264 Rec. 709 for playback at screenings.
